Zvezda A320 instructions

[F-27pax]

As part of my project to build some Australian A320s I acquired some Zvezda 1/144 A320 kits, mainly because they have parts for the V2500 engine (which most of the Revell kits don't). However the kit instructions I have only show how to assemble the CMF56 engines. This kit has so many parts that I don't know which parts go into the V2500s and I hope that some member has Zvezda instructions for those engines and can let me have a copy to overcome my confusion.

[scotty100368]

Leigh,

The ghosted-out parts of sprue D on the instructions are the V2500 parts.



1. The rear fans (D38) sit in the groove of the engine core halves (D4 & D5)
2. The front fan (D42) mounts onto the assembled engine core.
3. The engine is then mounted inside the nacelle halves (D31/D32 & D21/D22) at the notches.
4. The engine intake rings (D11/D12) then mount onto the front of the assembled nacelle.

Cheers!

[RayS]

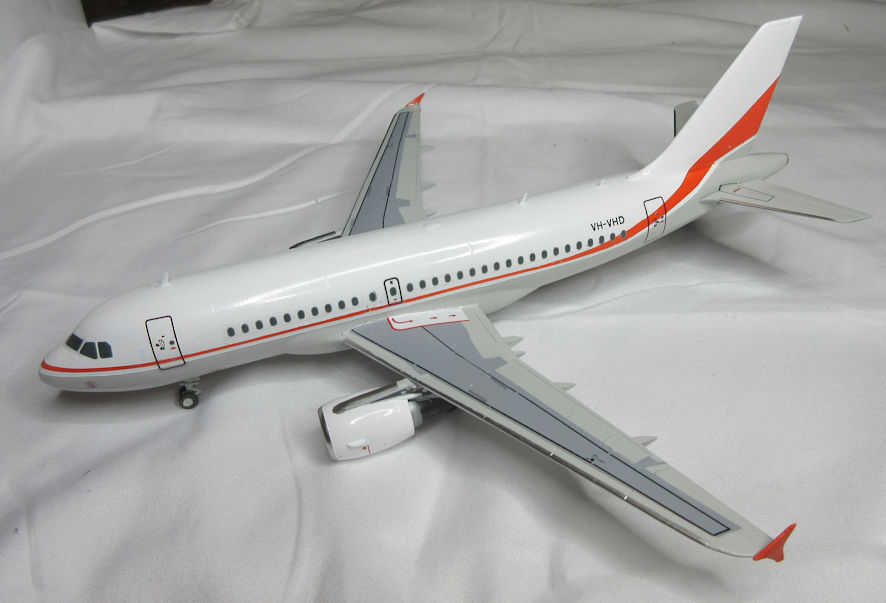

Lovely rendition of VH-VHD Leigh, did you paint the orange cheat line?

[F-27pax]

Thanks for the information Scotty. I'm finding this a very annoying kit with all the bits and pieces I don't need or want.

Yes Ray, the orange cheat line is my own. I think it is a nice little looking aeroplane in that livery, nicer than their new livery.
